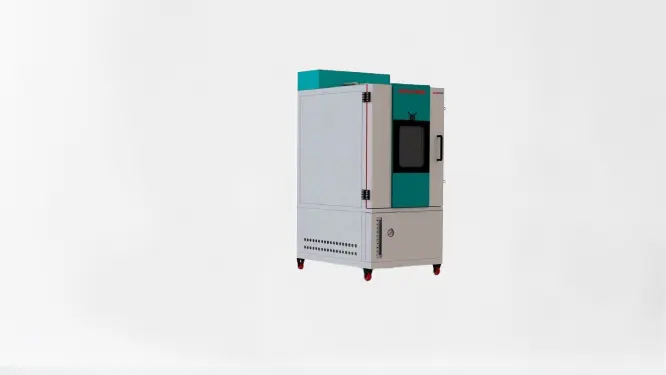

Water Jet Spray Chamber
Water jet test chamber for IPX5–IPX9K high-pressure spray testing per IEC 60529. Adjustable nozzle pressure and flow rate per standard. Get a quote.
An IPX rain test chamber evaluates the water-tightness of enclosures, connectors, and devices according to the IEC 60529 International Protection (IP) rating system. Each IP rating (IPX1–IPX9K) specifies exact water flow rates, pressures, nozzle sizes, and test durations to validate product durability. IPX testing is critical for:
Key Specifications
- Designed for IP water ingress validation
- Controlled water jet spray exposure testing
- Uniform test coverage for repeatable results
- Industrial-duty construction for long service life
- Custom chamber sizes and fixtures available
Key Features
- Oscillating Tube Mechanism (IPX3/X4): High-precision servo-motor (±60° or ±180° swing) ensures strict timing and uniformity for controlled spray testing.
- Integrated Water Recirculation: Multi-stage filtration (sand + cartridge filters) prevents nozzle clogging and maintains consistent flow rates across test cycles.
- High-Pressure IPX9K Module: Triplex plunger pump + integrated heater delivers +80°C steam-jet capability for severe environmental testing.
- Smart Turntable System: Perforated SS-304 construction prevents water pooling; tilt-adjustable mounting enables seal-surface angle optimization.
- Precision Oscillating Mechanism: Servo-motor-driven ±60°/±180° swing ensures reproducible spray patterns for IPX3/X4 testing—critical for seal validation.
- Multi-Stage Water Treatment: Sand + cartridge filtration maintains consistent flow rates (±5%) across extended test cycles, preventing nozzle clogs and data drift.
- High-Temp Jet Capability: Triplex plunger pump + integrated heater reaches +80°C steam-jet conditions for IPX9K testing—simulating harsh industrial wash-down scenarios.
- NABL-Certified Calibration: Flow rate and pressure measurement traceable to national standards ensures compliance with IEC 60529 tolerances.
- IEC 60529 certified testing platform with full IPX1–IPX9K capability
- Modular design allows easy reconfiguration for different IP ratings
- Expert technical support for test procedure development and validation
- Integrated data logging with time-stamped results for regulatory submission
- Rapid service response and comprehensive spare parts inventory
Applications
- Automotive: Door seals, connectors, sensor housings, electronics enclosures
- Consumer Electronics: Smartphone seals, camera housings, wearable devices
- Industrial Equipment: Junction boxes, motor enclosures, control panels
- Marine & Aerospace: Salt-spray resistance, high-pressure jet validation
- Defense & Military: Environmental ruggedness and combat readiness certification
- Quality Assurance: End-of-line testing for water-ingress compliance
Compliance Standards
- IEC 60529: International Protection (IP) Rating System—defines all IPX test procedures
- MIL-STD-810: Military environmental testing (thermal, water, salt-spray resistance)
- NABL Calibration: Flow rate and pressure calibration with traceability documentation
Safety Features
- Electrical safety protections for pump and control system
- Emergency stop and safe shutdown logic
- Water system protections and controlled drainage design
Optional Features
- Turntable/rotary mounting options (as required)
- Custom nozzle arrangements and pressure configurations
- Data logging and test report export
- Observation window and help lighting options
How It Works
- Mount the test sample on fixture or turntable inside the chamber
- Set water jet spray parameters as per test requirement
- Run the spray exposure cycle for specified duration
- Inspect sealing performance and ingress results after test completion
- Document results for compliance and validation reporting
Frequently Asked Questions
What is the difference between IPX5 and IPX6 testing?
IPX5 uses lower-flow water jets (12.5 L/min) from a single nozzle angle, while IPX6 uses higher flow (100 L/min) and broader nozzle range coverage. IPX6 is more severe and is often required for outdoor automotive applications.
Can we test custom-shaped enclosures?
Yes. The tilt-adjustable turntable accommodates non-standard geometries, and we can develop custom mounting fixtures for specialized housings.
How is water temperature monitored during IPX9K testing?
Integrated thermocouples track water temperature in real-time, with data logging to ensure +80°C conditions are maintained throughout the test cycle.
What documentation is provided after testing?
NABL-compliant test reports with flow rate calibration, pressure verification, temperature profiles, and pass/fail determination for regulatory submission.
