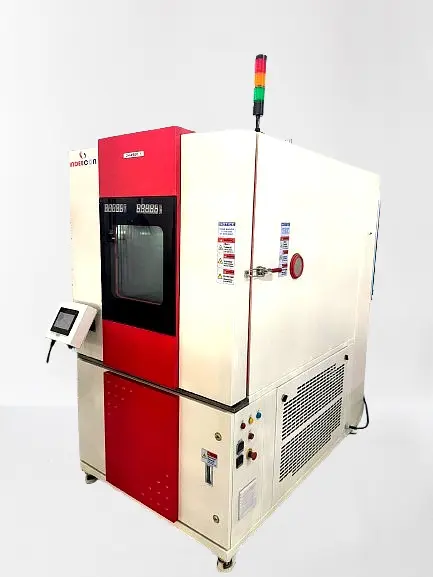

Hot and Cold Test Chamber
Temperature test chamber −70°C to +180°C without humidity. For electronics and automotive thermal cycling per IEC 60068-2-2. Forced-air design. Get a quote.
A temperature and humidity chamber (also referred to as a humidity chamber, climate chamber, or stability chamber) is a controlled-environment test enclosure that independently regulates both temperature and relative humidity. It is used to simulate real-world environmental conditions — from cold storage to tropical heat and humidity — to evaluate how products perform and degrade over time. Temperature humidity chambers are a cornerstone of accelerated life testing (ALT) and HALT/HASS programmes. They are commonly used to meet requirements under IEC 60068-2, MIL-STD-810, JEDEC JESD22, and ICH Q1A pharmaceutical stability guidelines.
Key Specifications
- Temperature range: -70°C to +180°C
- Rapid ramp rates for fast thermal cycling
- Capacities from 27L to 2000L
- Stable control for repeatable stress testing
- Ideal for automotive and EV battery qualification
Key Features
- Wide Temperature Range: -40°C to +180°C (standard), -70°C to +180°C (ultra-low option)
- Precise Humidity Control: 10% to 98% RH with ±2% RH stability
- Rapid Ramp Rates: 3–5°C/min heating, 1.5–3°C/min cooling for accelerated testing
- PLC Touchscreen Controller: Intuitive interface with programmable multi-step test profiles
- Premium Stainless Steel Construction: SS-304/316 interior for corrosion resistance
- Forced-Draft Airflow: Advanced circulation with adjustable louvers for uniform distribution
- IEC 60068 Compliant: Standards-ready with pre-loaded test protocols
- Data Logging & Analytics: Continuous recording with USB/RS-485 connectivity
- Observation Window with Interior Lighting: Monitor specimens without opening chamber
- Eco-Friendly Refrigerants: CFC-free R404A or R23 for environmental compliance
- Advanced PT-100 Sensor Arrays: Class A precision thermocouples ensure ±0.5°C stability across the entire chamber volume, meeting IEC 60068 uniformity requirements.
- CFC-Free Refrigeration: All units use eco-friendly R404A or R23 refrigerants, reducing environmental impact while maintaining -70°C to -40°C cooling performance.
- Programmable Multi-Step Profiles: PLC touchscreen controller enables complex HALT/HASS cycling with automatic ramp and soak transitions, simplifying accelerated life testing.
Applications
- Automotive: Dashboard, wiring harness, lighting system durability under extreme climates
- Aerospace & Defense: Component qualification, altitude/thermal cycling for flight systems
- Electronics & Semiconductors: PCB reliability, IC packaging validation, thermal cycling
- Pharmaceuticals: Stability testing per ICH Q1A for shelf-life determination
- Renewable Energy: Solar panel efficiency, battery thermal performance, wind turbine materials
- Materials Science: Polymer aging, adhesive bond strength, corrosion resistance
- Telecommunications: Equipment reliability in extreme climate zones
- Food & Beverage: Shelf-life simulation, packaging material degradation
Compliance Standards
- IEC 60068-2-1 — Cold testing
- IEC 60068-2-2 — Dry heat testing
- IEC 60068-2-78 — Damp heat (steady state)
- IEC 60068-2-30 — Damp heat (cyclic)
- MIL-STD-810 — Methods 501, 502, 507 (environmental testing)
- JEDEC JESD22-A101 — Steady state humidity bias testing
- ICH Q1A — Pharmaceutical stability testing guidelines
- ASTM D4169 — Packaging during storage and transport
- ISO 2533 — Standard atmosphere specifications
Safety Features
- High / Low temperature limit protection
- Compressor pressure and overload safety
- Alarm logs and diagnostic notifications
- Emergency stop and door safety interlock
Optional Features
- Data logging and cloud-based monitoring
- Customised cable ports and sample shelves
- LN2 injection for ultra-rapid cooling
- Air-cooled or water-cooled condenser options
How It Works
- Place samples in the chamber using specified spacing
- Program the required temperature cycle or soak steps
- The system regulates the heating and refrigeration for precise ramp rates
- Maintain the setpoints as per the testing duration
- Monitor results via the graphical controller or logging tools
Datasheets & Resources
- Temperature Range
- Stabilisation Time
- Power Supply
Frequently Asked Questions
What ramp rates are available?
Standard models offer 3°C to 5°C/min, while high-performance models can achieve up to 15°C/min.
Can I test EV batteries in this chamber?
Yes. We offer specialised configurations with safety features specifically for battery testing applications.
Is remote monitoring possible?
Yes. Our controllers support Ethernet and RS-485 for remote logging and control.
What is the smallest capacity available?
The benchtop 27L model is our smallest hot and cold chamber for laboratory use.
Do you provide installation support?
Yes. We provide full commissioning and training at the customer site.
