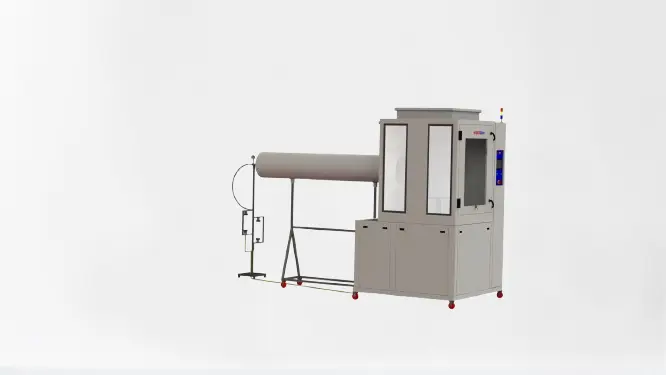

Rain Test Chamber – IP Test Chamber as per IEC 60529
Indeecon's rain test chamber and IP test chamber deliver precision water ingress testing for IP ratings from IPX1 through IPX9K. Modular systems support drip testing, oscillating spray, high-pressure water jets, immersion, and high-temperature steam jets (+80°C at 80–100 bar). Built to applicable IEC 60529, SAE J1211, and MIL-STD-810 requirements with NABL-calibrated flow rate and pressure measurement for reliable, repeatable results.
Key Specifications
- Controlled rainfall simulation for ingress validation
- Repeatable rain exposure for sealing qualification
- Designed for enclosures, lighting and automotive parts
- Industrial-duty construction for long service life
- Custom sizes and spray configurations available
What Makes Our Rain Test Chamber Stand Out
- Full IPX1–IPX9K Capability: Single platform covers drip box (IPX1/X2), oscillating spray (IPX3/X4), water jet (IPX5/X6), immersion (IPX7/X8), and high-pressure steam jet (IPX9K)
- Precision Oscillating Mechanism: Servo-motor-driven ±60°/±180° swing ensures reproducible spray patterns — critical for IPX3/X4 seal validation
- High-Pressure IPX9K Module: Triplex plunger pump and integrated heater delivers +80°C steam-jet at 80–100 bar for harsh industrial wash-down simulation
- Multi-Stage Water Recirculation: Sand and cartridge filtration maintains ±5% flow rate consistency — prevents nozzle clogging and data drift over extended test cycles
- Smart Turntable System: Perforated SS-304 construction prevents pooling; tilt-adjustable mounting optimises seal-surface angle for non-standard geometries
- NABL-Calibrated: Flow rate and pressure measurement traceable to national standards — ensures compliance with IEC 60529 tolerances for regulatory submission
- Three Chamber Sizes: 30–60L (benchtop, connectors), 150–300L (standard, electronics/door seals), 500–1000L+ (industrial, automotive subassemblies)
What is a Rain Test Chamber?
A rain test chamber is a controlled testing system used to simulate rainfall, water spray, and water-jet conditions to evaluate the water resistance of products and enclosures. It allows manufacturers to reproduce defined test conditions repeatedly and assess whether water enters the test specimen during exposure.
An IP test chamber is specifically configured to perform water-ingress tests associated with IP ratings. Depending on the required test level, the system can simulate dripping water, spraying water, oscillating water jets, powerful water jets, or immersion conditions.
Testing is commonly performed according to IEC 60529, which defines the IP Code and the degrees of protection provided by enclosures against the ingress of water and other external elements. This makes rain and water-ingress testing important for products intended for outdoor, industrial, automotive, electronic, and other demanding environments.
IP Test Chamber & IEC 60529 Testing
An IP test chamber provides controlled and repeatable water-ingress testing for products that require protection against water exposure. Indeecon's testing systems can be configured for different IPX test requirements, allowing manufacturers to validate enclosure performance under defined water-flow, pressure, spray-pattern, and exposure conditions.
IEC 60529 specifies the IP Code used to classify the degree of protection provided by electrical enclosures. Depending on the required IP rating, testing may involve dripping water, spraying water, water jets, or immersion. A properly configured IP test chamber helps manufacturers reproduce these conditions consistently for product validation and compliance testing.
The chamber can be configured based on the product dimensions, test method, water-flow requirements, pressure requirements, nozzle arrangement, and applicable testing standard.
| IP Test | Test Method | Typical Application |
|---|---|---|
| IPX1 | Vertically dripping water | Basic enclosure protection |
| IPX2 | Dripping water with enclosure tilted | Small electrical enclosures |
| IPX3 | Spraying water | Outdoor equipment |
| IPX4 | Splashing water | Electrical/electronic products |
| IPX5 | Water jets | Industrial equipment |
| IPX6 | Powerful water jets | Outdoor/automotive products |
| IPX7 | Temporary immersion | Waterproof enclosure testing |
| IPX8 | Continuous immersion | Products designed for immersion |
| IPX9 / IPX9K | High-pressure/high-temperature water | Automotive and demanding applications |
Compliance Standards
- IEC 60529 — International Protection (IP) Rating System; defines all IPX test procedures IPX1–IPX9K
- SAE J1211 — Recommended Practice for Automotive Water Spray Testing
- MIL-STD-810 — Environmental testing requirements for military equipment and components.
- NABL Calibration — Traceable calibration of flow rate and pressure measurement systems, where applicable.
Industries That Rely on Our Rain Test Chamber
- Automotive: Rain and water-ingress testing of door seals, connectors, sensors, lamps, electronic housings and other vehicle components.
- Consumer Electronics: IP testing of smartphones, cameras, wearables, electronic housings and portable devices.
- Industrial Equipment: Testing of control panels, junction boxes, motor enclosures, electrical cabinets and industrial equipment.
- Marine & Aerospace: Water exposure and ingress testing for components exposed to demanding environmental conditions.
- Defense & Military: Environmental water-ingress testing for equipment requiring ruggedness validation.
- Quality Assurance: Repeatable water-ingress testing for production validation, quality control and end-of-line inspection.
Safety Features
- Electrical safety protections for pumps and control system
- Emergency stop and safe shutdown logic
- Controlled drainage design to manage water flow safely
Optional Features
- Turntable/rotary mounting options (as required)
- Custom nozzle patterns and spray zones
- Data logging and reporting integration
- Observation window and internal lighting
How It Works
- Mount the test sample inside the chamber
- Configure rainfall spray pattern and exposure parameters
- Run rain simulation cycle for specified duration
- Inspect sealing performance and ingress results
- Document results for compliance and validation reporting
Frequently Asked Questions
What is the difference between IPX5 and IPX6 testing in an IP test chamber?
IPX5 and IPX6 both evaluate protection against water jets, but they use different water-flow and pressure conditions. An IP test chamber can be configured to meet the applicable test requirements for each rating.
Can we test custom-shaped enclosures?
Yes. The tilt-adjustable turntable accommodates non-standard geometries, and we can develop custom mounting fixtures for specialized housings.
How is water temperature monitored during IPX9K testing?
Integrated thermocouples track water temperature in real-time, with data logging to ensure +80°C conditions are maintained throughout the test cycle.
What documentation is provided after testing?
NABL-compliant test reports with flow rate calibration, pressure verification, temperature profiles, and pass/fail determination for regulatory submission.
What is an IP test chamber?
An IP test chamber is a controlled testing system used to evaluate the resistance of enclosures, electrical equipment and components against water ingress under defined IP test conditions. Depending on the required rating, the chamber can simulate dripping water, spraying water, water jets or immersion.
What is IEC 60529?
IEC 60529 is the international standard that defines the IP Code used to classify the degree of protection provided by enclosures against access to hazardous parts, solid foreign objects and water ingress.
Which IP ratings can be tested in a rain test chamber?
Depending on the chamber configuration, water-ingress tests can cover IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 requirements. Additional high-pressure/high-temperature testing can be configured for applicable automotive requirements.
Can an IP test chamber perform immersion testing?
Yes, a suitably configured system can support immersion testing for applicable IPX7 and IPX8 requirements. The test setup and conditions should be selected according to the relevant standard.
Which industries use rain test chambers?
Rain test chambers are used across automotive, electronics, electrical equipment, industrial machinery, aerospace, marine, defence and other industries where products need to withstand water exposure.
