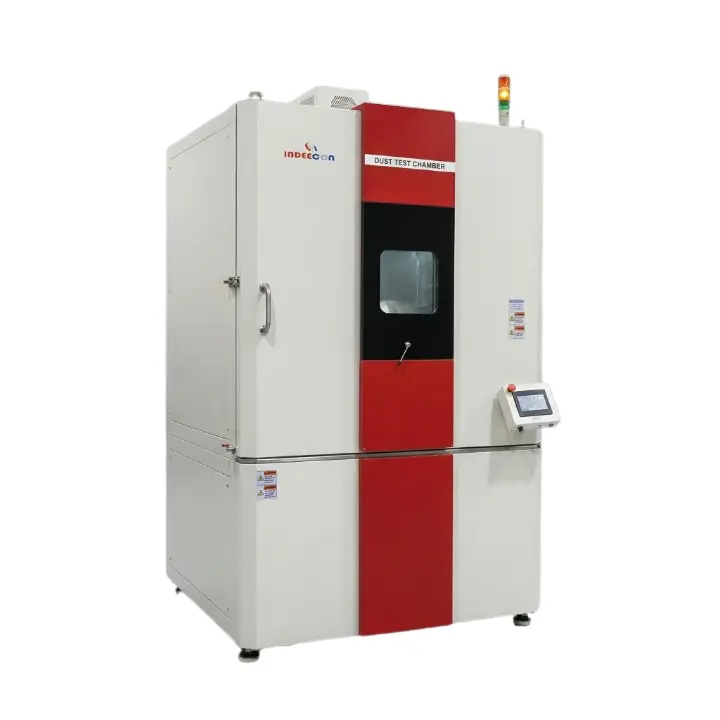

Dust Test Chamber
Indeecon dust test chambers simulate talcum powder ingress for IP5X and IP6X testing per IEC 60529. 512L to 1500L+ configurations. Contact us for a quote.
A dust test chamber simulates environmental dust ingress to validate component sealing integrity per IEC 60529 (Ingress of Dust and Water). IP5X tests partial dust ingress; IP6X tests total dust-proof capabilities. Precision vacuum systems maintain 2 kg/m³ talcum powder concentration, critical for automotive, electronics, and industrial equipment certification.
Key Specifications
- Complies with IP5X and IP6X standards
- Controlled talcum powder circulation system
- Integrated vacuum system for negative pressure testing
- Large observation window with internal lighting
- Stainless steel interior for easy cleaning
Key Features
- Dual-chamber configurations: 512L, 1000L, and custom walk-in (1500L+) options
- Precision vacuum control: Integrated pump with digital manometer (-20 mbar)
- Automated dust concentration: 2 kg/m³ talcum powder per IEC 60529
- High-velocity air circulation blower with V-shaped hopper for efficient dust collection
- Wire-mesh heating system maintaining optimal talcum dryness throughout test
- Built-in dust-proof power sockets for specimen equipment operation
- Large tempered glass observation window with integrated wiper and LED lighting
- Multi-stage filtration protecting vacuum pump and extending maintenance intervals
- Precision Vacuum Control for IP6X: Automated vacuum extraction with real-time flow rate monitoring ensures consistent -20 mbar depression, critical for IP6X dust-proof validation.
- Maintenance-Free Filtration: Multi-stage system captures 99.9% of talcum powder, protecting vacuum pump and reducing maintenance frequency to 6-12 month intervals.
- Optional Vibration System: Electromagnetic vibrator ensures continuous dust concentration and uniform chamber saturation throughout extended test cycles.
- IEC 60529 Precision: Engineered -20 mbar control meets strictest IP6X requirements
- Modular Design: 512L to walk-in (2000L+) configurations for any component size
- Maintenance-Optimized: Multi-stage filtration extends pump life and reduces downtime
- Observation-Ready: Large tempered glass window with wiper enables real-time test monitoring
- Global Support: Pre-loaded test profiles for automotive, aerospace, and industrial standards
Applications
- Automotive: Connectors, sensor housings, engine covers, suspension components
- Electronics: Power supplies, enclosures, outdoor camera housings, telecom equipment
- Industrial Equipment: Motor housings, control panel seals, bearing assemblies
- Aerospace: Engine components, landing gear seals, cockpit interface hardware
- Lighting: LED fixtures, outdoor luminaires, street lighting assemblies
- Telecommunications: Telecom enclosures, fiber splice cabinets, network equipment
Compliance Standards
- IEC 60529: Degrees of Protection (IP ratings) – International standard for dust/water ingress
- ISO 20653: Road vehicles – Degrees of protection (IP code) for electrical connections
- SAE J575: Test procedures for automotive electrical connectors
- MIL-STD 810: Environmental test methods for military equipment
- ASTM D1735: Dry powder preservation and dust-proof testing
- BS EN 60529: British Standard for ingress protection ratings
Safety Features
- Emergency stop and blower overload protection
- Filter system to protect vacuum pump from dust ingress
- Door safety interlock during operation
- Over-current and short-circuit protection
Optional Features
- Customised sample mounting fixtures
- Temperature-controlled dust environment (optional)
- Extended chamber volumes for large enclosures
- External dust collection and filtration units
How It Works
- Mount the test specimen inside the chamber and connect vacuum lines
- Charge the hopper with the specified talcum powder media
- Set the test duration and vacuum levels on the touchscreen
- The system maintains dust concentration and negative pressure
- Examine the specimen for any dust ingress after final cleaning
Datasheets & Resources
- Media Type
- Vacuum Range
- Controller
- Power Supply
Frequently Asked Questions
What's the difference between IP5X and IP6X testing?
IP5X tests dust resistance (limited ingress allowed); IP6X tests complete dust-proof capability (no ingress allowed). IP6X is more stringent and uses lower pressure (~20 mbar vs. 30 mbar for IP5X).
How much talcum powder does each test consume?
typical chamber (1000L) uses 2kg of talcum per test cycle. Indeecon supplies or can recommend pharmaceutical-grade talcum suppliers.
Can I test operating equipment (e.g., fans, pumps)?
Yes, built-in dust-proof power sockets allow specimens to operate during testing, enabling in-service dust ingress validation.
What's the maintenance schedule for the vacuum pump?
With the 3-stage filtration, expect 6-12 month service intervals. Filter replacement is simple and non-invasive.
Can the chamber accommodate large assemblies?
Yes, custom walk-in configurations (2000L+) support entire vehicle sub-assemblies or industrial equipment. Contact our team for sizing.
