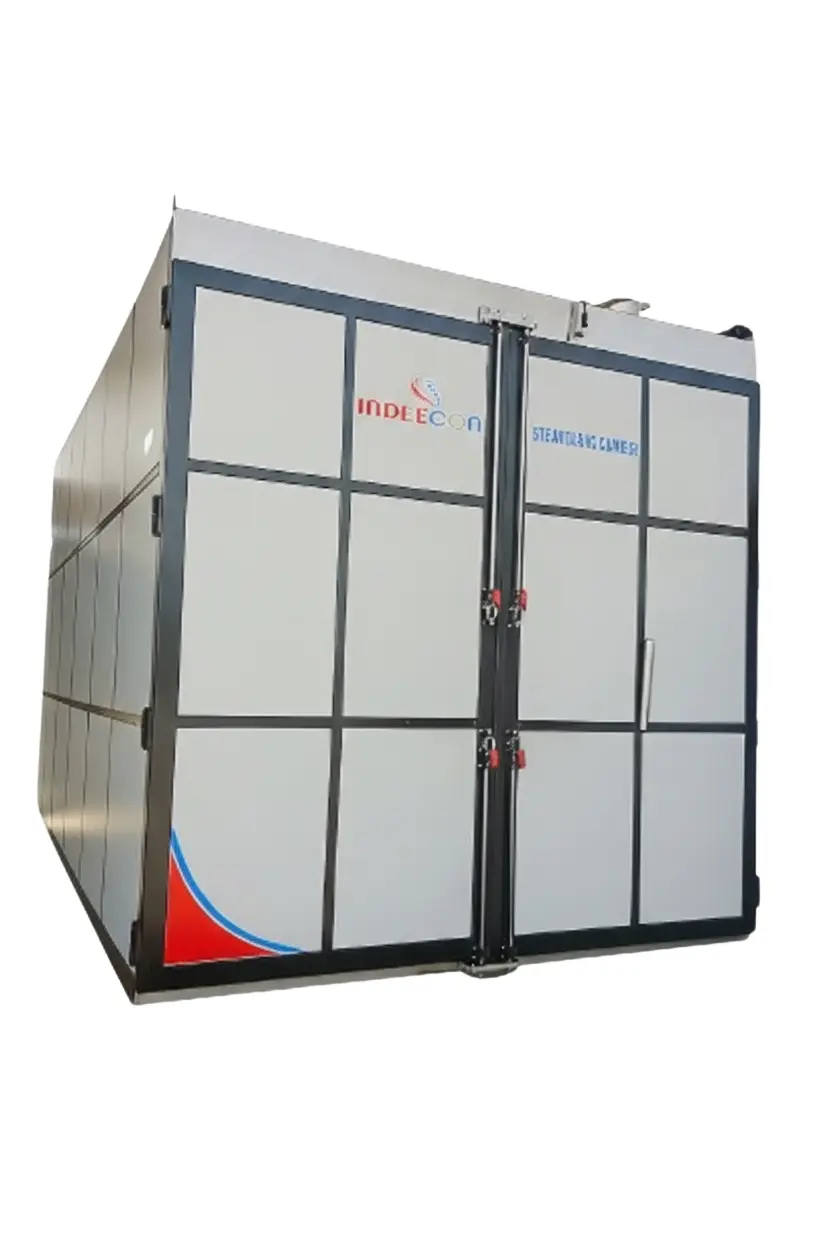

XLPE Cable Curing Chamber

Precision battery curing and XLPE cable cross-linking chambers for lead-acid manufacturing. Standards-compliant. NABL calibration. Fast lead times.

XLPE (Cross-Linked Polyethylene) cross-linking is a chemical process where polyethylene polymer chains bond together through peroxide decomposition or radiation, creating a three-dimensional network. This cross-linked structure dramatically improves the cable's thermal stability, electrical properties, and mechanical strength. Under-cured XLPE insulation is brittle and prone to electrical breakdown — the leading cause of high-voltage cable failures in the field. Indeecon chambers ensure uniform, precise cross-linking across the entire cable drum.

Key Specifications

Temperature range: 80°C to 90°C
Humidity range: 85% to 95% RH
Steam curing with stable process control
PLC + HMI automation (as per configuration)
Designed for industrial cable production

Key Features

Cold-Start Profile Capability: Unique feature allowing plates to gain strength at high humidity before drying phase begins, preventing cracking
Vertical Laminar Airflow: Ensures uniform plate oxidation and consistent curing across all plates in a batch
Multi-Step Ramp & Soak Control: Programmable temperature and humidity profiles for optimised 3BS → 4BS conversion
SS-316 Internal Construction: Resists acidic vapor corrosion from battery paste outgassing
Hydrogen Monitoring: Integrated gas sensors for hydrogen detection with emergency venting capability
Paste-to-Grid Adhesion Optimisation: Cold-start profile prevents delamination and ensures superior bond strength
Engineering Highlight: Our battery chambers feature a unique "Cold-Start" profile capability. This allows the plates to gain strength at high humidity before the drying phase begins, preventing plate cracking and ensuring high "Paste-to-Grid" adhesion. This proprietary profile is a key differentiator that reduces scrap rates and improves battery life.
Radial Airflow Distribution: Ensures heat penetrates deep layers of wound cable drum uniformly, preventing under-curing
Saturated Steam or Dry Heat: Flexible medium selection (steam for moisture-sensitive insulation, dry heat for speed)
Heavy-Duty Floor Tracks: Trolley-mounted cable drums up to 4m+ diameter reels
Uniform Temperature Profile: ±3°C throughout the mass of the cable reel
Data Logging for Compliance: Complete temperature/time records for Hot Set Test certification
Custom Chamber Sizing: Designed around your drum diameter and batch requirements
Pressure-Rated Construction: Up to 5 Bar for steam-injection models
Engineering Highlight: Indeecon XLPE chambers utilize a Radial Airflow Distribution system. This ensures that heat penetrates the deep layers of a wound cable drum uniformly, preventing "Under-curing" at the core, which is the leading cause of insulation breakdown in high-voltage cables. This proprietary design is critical for passing rigorous Hot Set Test audits.
Proven expertise in battery and cable manufacturing — trusted by tier-1 OEMs
Proprietary Cold-Start and Radial Airflow technologies unavailable elsewhere
Full after-sales support: Installation, commissioning, and ongoing technical support
NABL-accredited calibration included with every chamber
Customization available: Chamber sizing, automation, and bespoke control systems
Competitive pricing with fast manufacturing lead times

Applications

High-voltage (HV) and extra-high-voltage (EHV) cable manufacturing
Submarine and underground cable insulation cross-linking
Power distribution and transmission cable production
Specialized industrial cables: mining, petrochemical, offshore
Contract cable manufacturers requiring documented Hot Set compliance

Compliance Standards

Battery Manufacturing (IS 1651): Our chambers are optimized to help manufacturers meet Indian and International standards for deep-cycle and automotive batteries. By controlling the 3BS to 4BS crystal transition, we help you improve Cold Cranking Amps (CCA) and overall battery life.
Cable Insulation (IS 7098 / IEC 60811): Our XLPE ovens are essential for passing the "Hot Set Test." We provide the data logging required to prove that the cable was maintained at the correct cross-linking temperature for the entire duration of the batch.
NABL Traceability: Both product lines are supplied with NABL-accredited calibration for temperature and (where applicable) humidity and pressure sensors, ensuring your facility is audit-ready for ISO 9001 and industry-specific certifications.

Safety Features

High temperature protection with alarms
Overload protection for heaters/blowers (as applicable)
Door safety interlock and emergency stop (as applicable)

Optional Features

Integrated steam generator (as per model)
Custom loading racks and fixtures for cable coils/drums
Data logging and batch traceability
Remote monitoring and alarm output

How It Works

Cable components are loaded into the chamber using racks/fixtures
Steam curing cycle is selected via PLC/HMI control system
Temperature and humidity are maintained within the set range
Uniform circulation ensures consistent curing across the batch
Cycle completes with controlled shutdown and safe unloading

Datasheets & Resources

Temperature Range
Humidity Range
Automation
Power Supply
Phase

Frequently Asked Questions

What is the 3BS to 4BS crystal transition in battery curing?

Lead oxide (3BS / tribasic lead sulphate) converts to tetrabasic lead sulphate (4BS) during hydroset curing. This transition is critical for battery performance — it stabilizes the plate structure, improves CCA, and increases cycle life. Our Cold-Start profile optimizes this transition.

Why is uniform heat distribution so important for XLPE cable curing?

Uneven heating causes under-curing at the cable core. Under-cured insulation is brittle and prone to electrical breakdown under high voltage stress. Our Radial Airflow system ensures the entire drum reaches optimal cross-linking temperature, preventing field failures.

Are your chambers compatible with automated batch systems?

Yes. Both battery and XLPE chambers can integrate with PLC-based manufacturing systems, with real-time data logging and alarm outputs via RS-485 or Ethernet.

Do you provide NABL calibration certificates?

Yes. Every chamber is supplied with NABL-accredited calibration certificates for temperature (and pressure/humidity where applicable). Recalibration services are available annually.
