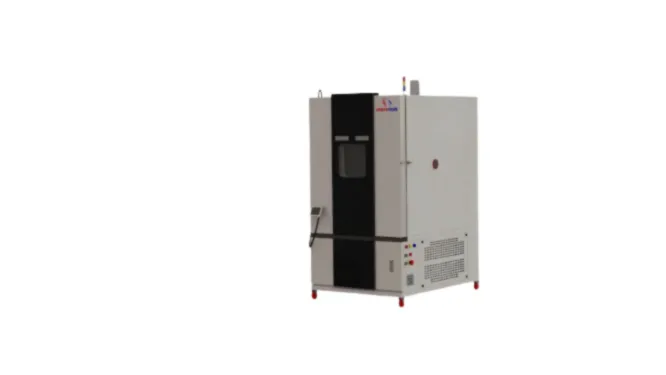

137L Large Capacity Temp Calibration Chamber
Indeecon 137L vertical temperature calibration chamber for high-volume sensor validation. Space-saving tall design, ±0.3°C uniformity. Perfect for manufacturing QA.
Key Specifications
- Vertical configuration for easy probe handling
- Temperature options: -30°C to 50°C / -75°C to 50°C (model dependent)
- Stable control for repeatable calibration results
- Suitable for RTD, thermocouple and probe calibration
- Custom inserts available for multiple probe sizes
Key Features
- 137L capacity with vertical design minimizes floor footprint in manufacturing facilities
- Dual-shelf configuration supports simultaneous multi-batch sensor calibration
- Temperature range: -20°C to +80°C with ±0.3°C spatial uniformity
- Ramp rates: 2–4°C/min enable efficient multi-point calibration schedules
- Stainless steel interior surfaces resist corrosion from humidity and cleaning agents
- Integrated circulation fan ensures rapid thermal equilibration across shelf positions
- PLC-based temperature control with Ethernet connectivity for remote monitoring
- NABL-certified calibration procedures support manufacturing QA accreditation
- Flexible shelving accommodates sensors ranging from tiny thermocouples to large sensor clusters
- Alarm logging system documents any temperature deviations for compliance records
Applications
- Automotive Manufacturing: Validation of engine bay and cabin temperature sensors for OEM quality gates
- Pharmaceutical Production: Calibration of cleanroom monitoring sensors and cold-chain validation equipment
- Food Manufacturing: Large-volume calibration of refrigeration and freezer temperature probes
- HVAC Testing: Validation of building automation sensors for climate control systems
- Electronics Manufacturing: Thermal chamber calibration for component reliability testing
- Logistics and Distribution: Cold-chain sensor validation for pharmaceutical and perishable shipping
Compliance Standards
- ISO 17025:2017 calibration and testing procedures
- ASTM E220 industrial platinum RTD calibration methods
- IEC 61010-1 laboratory equipment safety and performance
Safety Features
- Over-temperature protection and controller safety limits
- Electrical safety protections for heater and controller
Optional Features
- Custom inserts and probe holders
- Reference probe integration support
- Data logging and documentation support
How It Works
- Select the temperature setpoint on the controller
- Allow stabilisation at the required setpoint
- Insert probe/sensor into the insert block
- Compare readings against a reference standard
- Record results for calibration traceability
Datasheets & Resources
- Standard Models
- Stability / Uniformity
Frequently Asked Questions
Why is the vertical design important?
Vertical chambers minimize floor footprint while maximizing usable volume—critical in manufacturing facilities where space is premium. A 137L vertical chamber occupies roughly 60 cm × 40 cm floor space versus 100 cm × 80 cm for an equivalent horizontal chamber.
How many sensors can I calibrate simultaneously?
With dual shelves, you can typically calibrate 20–40 sensors depending on probe size. Larger sensor clusters (e.g., automotive harnesses with 5–10 thermocouples) may reduce the count. Consult Indeecon for your specific loading scenario.
What's the typical cycle time for a multi-point calibration?
A standard 5-point calibration (-20, 0, 25, 50, 80°C) with 20-minute stabilization at each setpoint takes approximately 2.5–3 hours. With parallel loading, you can validate 20–30 sensors in a single shift.
Is this suitable for OEM automotive supply chain qualification?
Yes. Indeecon designs this chamber to meet automotive supplier requirements (IATF 16949, APQP protocols). NABL certification and integrated data logging provide the traceability required for OEM quality gates.
Can I control this remotely for shift monitoring?
Yes. The Ethernet interface allows remote temperature monitoring via secure web interface or SCADA integration. Alarm notifications can be sent to maintenance staff via email or SMS.
